Delta MS300 VFD13AMS43ANSAA is a 5.5 kW / 7.5 HP compact variable frequency drive (VFD) for 380–480 V three-phase input. It delivers 13 A heavy-duty and 15.7 A normal-duty output current in a D1 frame (109 × 207 × 154 mm).
- Rate: Original price was: ₹21,300.00.₹19,700.00Current price is: ₹19,700.00.
- Availability: Out of stock
- Terms & Conditions: Freight & GST Extra. Availability subject to prior sale.
Product Information
VFD13AMS43ANSAA Overview
VFD13AMS43ANSAA is a 5.5 kW / 7.5 HP Delta MS300 drive for 380–480 V three-phase supply. The D1-frame model has fan cooling, 13 A heavy-duty output current, 15.7 A normal-duty output current, and 172.3 W total power dissipation.
Technical Data
VFD13AMS43ANSAA Electrical & Motor Data
- Brand
- Delta Electronics
- Model
- VFD13AMS43ANSAA
- Series
- MS300
- Drive Type
- Standard compact vector-control VFD / AC motor drive
- Applicable Motor
- 5.5 kW / 7.5 HP
- Input Supply
- 3Φ 380–480 VAC
- Output
- 3Φ 0–480 VAC
- Heavy Duty Current
- 13 A
- Normal Duty Current
- 15.7 A
- Maximum Output Frequency
- 599 Hz
- Heavy Duty Overload
- 150% for 60 s; 200% for 3 s
- Normal Duty Overload
- 120% for 60 s; 150% for 3 s
- Supported Motors
- Induction (IM), Interior Permanent Magnet (IPM), Surface Permanent Magnet (SPM)
- Brake Chopper
- Built in
- EMC Filter
- Not built in
Control, Safety & Connectivity
Control & I/O
- Control Methods
- V/F, SVC, FOC Sensorless
- Starting Torque
- 150% at 3 Hz (V/F, SVC for IM); up to 200% at 0.5 Hz (FOC Sensorless for IM), Heavy Duty
- Carrier Frequency
- 2–15 kHz (4 kHz default)
- Built-in PLC
- 2k steps
- Digital Inputs
- 7 multi-function inputs (MI1–MI7)
- Analog Inputs
- AVI and ACI
- Analog Output
- AFM
- Transistor Outputs
- 2 multi-function outputs (MO1, MO2)
- Relay Output
- 1 multi-function relay output (RY1)
- Safe Torque Off
- Integrated STO
- Built-in Communication
- RS-485 / Modbus
- Communication Expansion
- Via MS300 option cards
Installation Data
VFD13AMS43ANSAA Mechanical Data & Dimensions
Mechanical & Environment
- Protection
- IP20 / UL Open Type
- Frame
- D1
- Cooling
- Fan cooling with fan kit
- Total Power Dissipation
- 172.3 W
- Operating Temperature
- -20 to 50 °C without derating; up to 60 °C with derating
- Operating Humidity
- Maximum 90%
- Altitude
- 0–1000 m without derating
- Installation / Environment
- Indoor use, Pollution Degree 2
- Certifications
- UL, CE, TÜV, RoHS, RCM, REACH

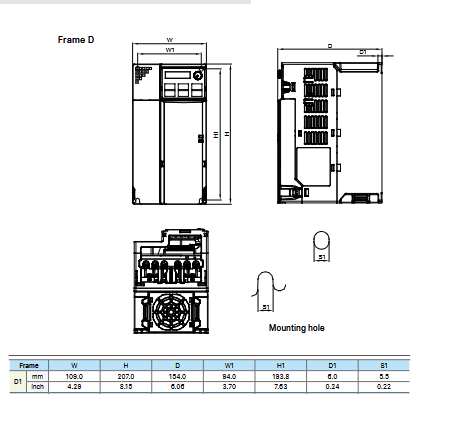

Dimensions
Frame D1 Dimensions
- W — Width
- 109 mm
- H — Height
- 207 mm
- D — Depth
- 154 mm
- W1 — Mounting Width
- 94 mm
- H1 — Mounting Height
- 193.8 mm
- D1 — Mounting Offset
- 6.0 mm
- S1 — Mounting Hole
- 5.5 mm
Verify final panel layout, mounting clearance and environmental requirements against the latest manufacturer documentation before installation.
Product Design
MS300 Features
Hardware Design
Compact Hardware & Serviceability
Compact standard vector-control drive design intended to reduce cabinet space and simplify installation and maintenance.
- Removable keypad: For remote operation.
- Built-in USB: For parameter setting, updates, monitoring and tuning.
- Screwless control terminals: For faster wiring.
- Removable RFI jumper: For application flexibility.
- Service-friendly construction: Removable cover and fan design across applicable frames.
Communication & Expansion
The MS300 includes one option slot for communication or external-power expansion.
- Optional networks: PROFIBUS DP, DeviceNet, Modbus TCP, EtherNet/IP, CANopen, EtherCAT and PROFINET.
- External 24 V power option: Supports continued network and PLC operation when mains power is removed.
Drive Functions
Motor Control & Drive Performance
- High starting torque
- Up to 200% at 0.5 Hz under sensorless FOC for IM in Heavy Duty operation.
- Deceleration Energy Backup (DEB)
- Controlled deceleration during unexpected power loss.
- Enhanced braking
- Deceleration Energy Control can shorten braking time in suitable applications.
Machine Control Functions
- Multi-motor control
- Up to 4 independent induction-motor parameter sets.
- Pulse control
- Pulse input and pulse output support.
- PID
- 2 sets of PID control functions.
- Speed functions
- 16-step speed, JOG, S-curve acceleration/deceleration and speed search.
Typical MS300 Applications
Machine tools, woodworking machines, automatic tool changers, pumps, packaging machines, textile machines, conveyors and general-purpose automation.
Documentation
VFD13AMS43ANSAA Downloads
Before installation, verify terminal assignments, protective devices, cable sizing and grounding against the latest manufacturer documentation and the connected motor requirements.
