VFD2A8MS21ANSAA
Delta MS300 VFD2A8MS21ANSAA is a compact 0.4 kW (0.5 HP) variable frequency drive (VFD) designed for 200–240 V single-phase input and 0–240 V three-phase output.
It delivers 2.8 A heavy-duty and 3.2 A normal-duty output current, with a compact A3 frame for industrial motor control applications.
- Rate: Original price was: ₹9,000.00.₹8,000.00Current price is: ₹8,000.00.
- Availability: In stock
- Terms & Conditions: Freight & GST Extra. Availability subject to prior sale
Product Information
VFD2A8MS21ANSAA Overview
VFD2A8MS21ANSAA is a 0.4 kW / 0.5 HP MS300 compact variable frequency drive for 230 V-class single-phase input. It is a frame A3 model with Natural air cooling and 30.8 W total power dissipation.
Technical Data
VFD2A8MS21ANSAA Electrical & Motor Data
- Brand
- Delta Electronics
- Model
- VFD2A8MS21ANSAA
- Series
- MS300
- Drive Type
- Standard compact vector-control VFD / AC motor drive
- Applicable Motor
- 0.4 kW / 0.5 HP
- Input Supply
- 1Φ 200–240 VAC
- Output
- 3Φ 0–240 VAC
- Heavy Duty Current
- 2.8 A
- Normal Duty Current
- 3.2 A
- Maximum Output Frequency
- 599 Hz
- Heavy Duty Overload
- 150% for 60 s; 200% for 3 s
- Normal Duty Overload
- 120% for 60 s; 150% for 3 s
- Supported Motors
- Induction (IM), Interior Permanent Magnet (IPM), Surface Permanent Magnet (SPM)
- Brake Chopper
- Built in
- EMC Filter
- Not built in
Control, Safety & Connectivity
Control & I/O
- Control Methods
- V/F, SVC, FOC Sensorless
- Starting Torque
- 150% at 3 Hz (V/F, SVC for IM); up to 200% at 0.5 Hz (FOC Sensorless for IM), Heavy Duty
- Carrier Frequency
- 2–15 kHz (4 kHz default)
- Built-in PLC
- 2k steps
- Digital Inputs
- 7 multi-function inputs (MI1–MI7)
- Analog Inputs
- AVI and ACI
- Analog Output
- AFM
- Transistor Outputs
- 2 multi-function outputs (MO1, MO2)
- Relay Output
- 1 multi-function relay output (RY1)
- Safe Torque Off
- Integrated STO
- Built-in Communication
- RS-485 / Modbus
- Communication Expansion
- Via MS300 option cards
Installation Data
VFD2A8MS21ANSAA Mechanical Data & Dimensions
Mechanical & Environment
- Protection
- IP20 / UL Open Type
- Frame
- A3
- Cooling
- Natural air cooling
- Total Power Dissipation
- 30.8 W
- Operating Temperature
- -20 to 50 °C without derating; up to 60 °C with derating
- Operating Humidity
- Maximum 90%
- Altitude
- 0–1000 m without derating
- Installation / Environment
- Indoor use, Pollution Degree 2
- Certifications
- UL, CE, TÜV, RoHS, RCM, REACH

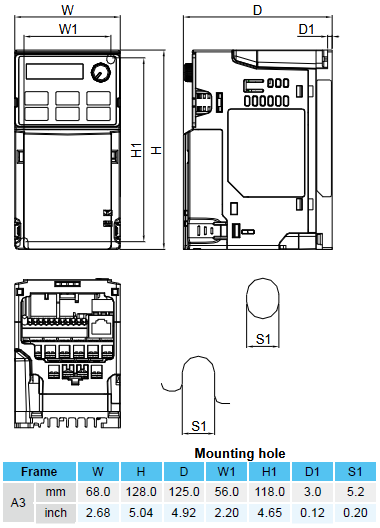

Dimensions
Frame A3 Dimensions
- W — Width
- 68 mm
- H — Height
- 128 mm
- D — Depth
- 125 mm
- W1 — Mounting Width
- 56 mm
- H1 — Mounting Height
- 118 mm
- D1 — Mounting Offset
- 3.0 mm
- S1 — Mounting Hole
- 5.2 mm
Verify final panel layout, mounting clearance and environmental requirements against the latest manufacturer documentation before installation.
Product Design
MS300 Features
Hardware Design
Compact Hardware & Serviceability
Compact standard vector-control drive design intended to reduce cabinet space and simplify installation and maintenance.
- Removable keypad: For remote operation.
- Built-in USB: For parameter setting, updates, monitoring and tuning.
- Screwless control terminals: For faster wiring.
- Removable RFI jumper: For application flexibility.
- Service-friendly construction: Removable cover and fan design across applicable frames.
Communication & Expansion
The MS300 includes one option slot for communication or external-power expansion.
- Optional networks: PROFIBUS DP, DeviceNet, Modbus TCP, EtherNet/IP, CANopen, EtherCAT and PROFINET.
- External 24 V power option: Supports continued network and PLC operation when mains power is removed.
Drive Functions
Motor Control & Drive Performance
- High starting torque
- Up to 200% at 0.5 Hz under sensorless FOC for IM in Heavy Duty operation.
- Deceleration Energy Backup (DEB)
- Controlled deceleration during unexpected power loss.
- Enhanced braking
- Deceleration Energy Control can shorten braking time in suitable applications.
Machine Control Functions
- Multi-motor control
- Up to 4 independent induction-motor parameter sets.
- Pulse control
- Pulse input and pulse output support.
- PID
- 2 sets of PID control functions.
- Speed functions
- 16-step speed, JOG, S-curve acceleration/deceleration and speed search.
Typical MS300 Applications
Machine tools, woodworking machines, automatic tool changers, pumps, packaging machines, textile machines, conveyors and general-purpose automation.
Documentation
VFD2A8MS21ANSAA Downloads
Before installation, verify terminal assignments, protective devices, cable sizing and grounding against the latest manufacturer documentation and the connected motor requirements.
